| Modle: |

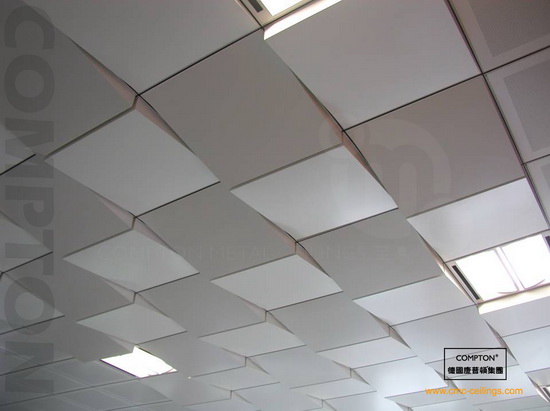

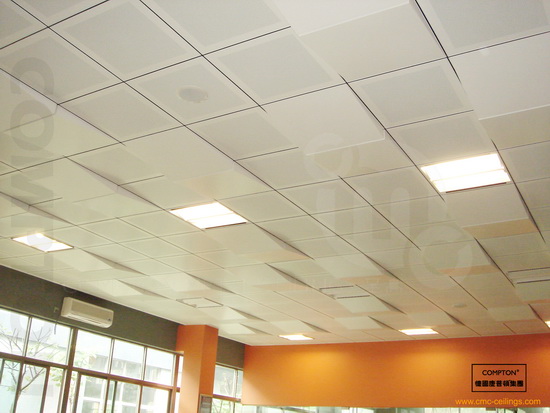

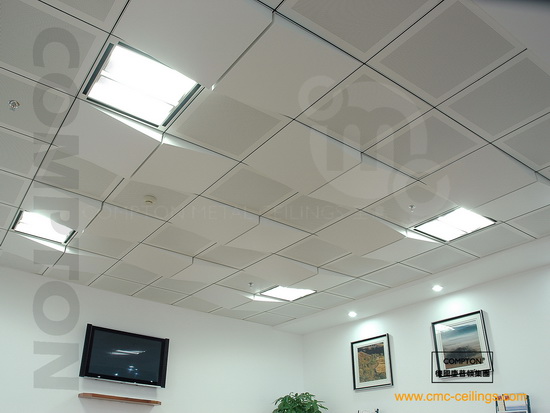

COMPTON-600N Sloping Ceilings system |
| Patent No.: |
ZL200730059899.5 |
|
|
|
|
| description: |
COMPTON designers believe that a plane was too monotonous and smallpox, there is no sense of hierarchy, and the shape of the ceiling and installed components are too complex. Therefore, COMPTON introduced smallpox 600N modular system.
COMPTON-600N smallpox modular system with high and low side of the plate not only broke the plane of a smallpox-face sluggish customs, but also based on different premises on the need to carry out a flexible combination of design, installation maintenance are extremely convenient.
|
| Keel: |
41mm high, 14.3mm wide, 0.4mm thick, the material for the baking surface made of hot-dip galvanizing provides a black, white groove. |
| Panel: |
Thickness of 0.8mm, height of 8mm-84mm, width of 600mm, material for aluminum alloy 3003, spraying the surface with powder. |
| Color: |
The color can be chosen with reference to the color swatch cards Compton offers. |
| Suspension rod system: |
φ 6mm screw rod. |
| Perforation: |
-- |
| Integrated system: |
It is proposed that the lighting and air-conditioning should be at the same level of ceiling, or the lighting be installed under the ceiling separately. |
| Minimum clearance: |
350mm |
| Interval of keel: |
perforation or plain tile is available; |
| Interval of the suspension rod: |
1200mm x 1200mm |
|
|
|
